Eliminating flow disturbances due to crowded equipment conditions

With their exclusive flow profile and anti-swirl tab design, the Vortab process flow conditioners correct fluid disturbances to mimic adequate pipe straight run and produce a highly repeatable, symmetrical flow profile.

Vortab flow conditioners are proven to be the industry’s lowest pressure drop flow conditioning technology, which reduces energy costs and minimises process design considerations.

Their use also eliminates the extra pipe cost and technician labour for additional lengths of pipe straight run and/or moving equipment around to accommodate new pumps.

In long lengths of straight pipe, swirl reduction and velocity profile correction occur naturally due to diffusion, friction and turbulent mixing.

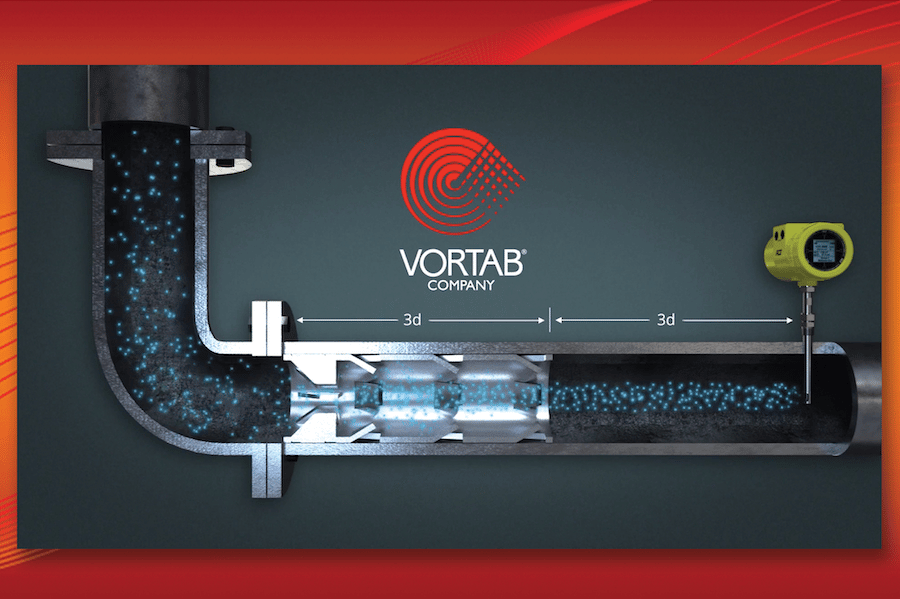

The Vortab Flow Conditioner’s anti-swirl and inclined vortex generating profile correction tabs, projecting from the inside pipe surface, generate vortices that accelerate these natural pipe effects to create a uniform, non- swirling, symmetrical flow profile in a much shorter section of pipe.

The simple, flexible designs of the Vortab Insertion Plate (Model VIP), Vortab Elbow (Model VEL) and the Vortab Insertion Sleeve (Model VIS) configurations provide a cost effective, easy to install solution that supports proper pump installation. They can be made from carbon steel, 316L stainless steel or Hastelloy C-276 and in almost any pipe size.

A variety of process connections are also available–ANSI flanges, male NPT threads, butt welded preps or retaining wafers.
